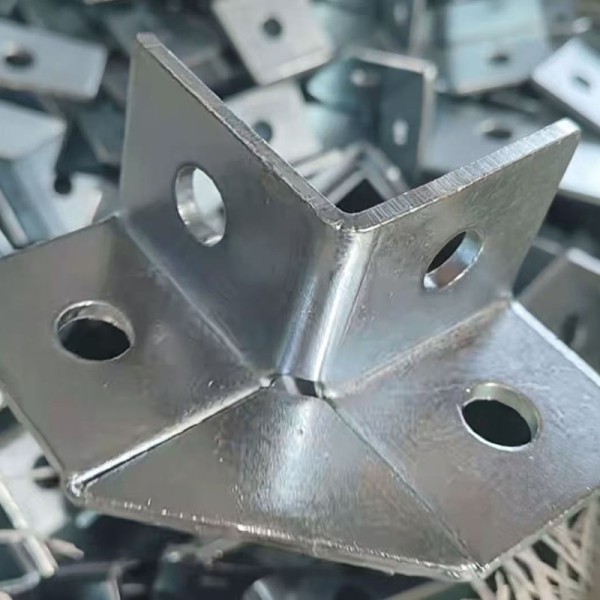

8 Hole Unistrut Wing Angle Fittings Multi-directional Strut Channel Connection Parts
Introduction
Our 8 Hole Unistrut Wing Angle Fittings are multi-directional connecting parts with 8-hole dense layout, designed for complex multi-angle strut channel assembly. The unique 8-hole multi-position design provides more assembly points and adjustment angles, which can realize multi-directional cross connection and layered fixing of strut channels, solving the connection difficulties of complex multi-layer frames. Adopting integral thick steel plate stamping molding, the product has uniform stress and strong bearing capacity, and will not deform or loose under multi-point stress. The surface is treated with high-standard galvanization to resist corrosion and oxidation, adapting to indoor and outdoor multi-scene use. Each hole position is precisely calibrated with uniform caliber and smooth hole wall, ensuring flexible disassembly and repeated use. This 8-hole wing angle fitting is widely used for multi-layer equipment frames, three-dimensional pipeline support, multi-group channel steel combined fixing and complex industrial frame construction. It greatly improves the assembly diversity and structural stability of strut channel systems, and is a high-efficiency multi-directional connecting accessory.
Features
The professional 8-hole multi-point layout provides super multi-directional connection functions, supporting multi-angle and multi-layer assembly of strut channels. It solves the single connection limitation of traditional few-hole brackets and improves the flexibility of frame construction. The thickened integral structure ensures uniform stress at each hole position, no local deformation, and stable overall structure. High-quality galvanized surface has good anti-rust and anti-corrosion performance, with long service life. Precision hole position processing ensures smooth assembly and flexible disassembly, with high reuse rate. The multi-point fixing design improves the overall firmness and stability of the frame structure. It is suitable for various complex three-dimensional and multi-layer strut channel frame projects, with strong practicability and wide application range.
Specification
|
Item
|
Technical Specification
|
|
Product Name
|
Unistrut Angle Fittings, Strut Channel Corner Bracket, L-type Angle Connector, 3-Way Wing Angle Fittings
|
|
Applicable Channel
|
41x21mm, 41x41mm Standard Strut Channel, BTB Back-to-Back Strut Channel
|
|
Angle Style
|
90 Degree Right Angle, L Shape, Flat Gusset Plate, 3-Way Multi-directional Type
|
|
Hole Design
|
2 Holes, 4 Holes, 8 Holes, Multi-hole Adjustable, Custom Punching Available
|
|
Plate Thickness
|
2.0mm, 2.5mm, 3.0mm, Thickened Heavy Duty Type, Custom Thickness
|
|
Raw Material
|
Q235B Carbon Steel, Q355 High Strength Steel, SUS304 Stainless Steel, SUS316 Stainless Steel
|
|
Surface Treatment
|
Hot Dip Galvanized(HDG), Pre-Galvanized(GI), Electro-galvanized, Stainless Steel Polished
|
|
Zinc Coating Thickness
|
Electro-galvanized: 8-12μm; Pre-galvanized: 15-25μm; HDG: 60-85μm
|
|
Manufacturing Process
|
Integral One-piece Stamping Forming, No Weld Gap, High Flatness
|
|
Dimensional Tolerance
|
±0.3mm High Precision Dimension & Hole Position Control
|
|
Performance Features
|
Heavy Load Bearing, Anti-deformation, Anti-corrosion, Vibration Resistant, Easy Installation, Reusable
|
|
Application Scenarios
|
Solar Mounting System, HVAC Duct Support, Industrial Pipe Support, Construction Framing, Seismic Bracing, Electrical Equipment Fixing
|
|
Custom Service
|
OEM, ODM, Custom Size, Custom Hole Spacing, Custom Thickness, Custom Logo
|
|
Stock Status
|
Standard Sizes In Stock, Custom Sizes Support Production
|
|
MOQ
|
Small Trial Order Acceptable, Bulk Order Supported
|
|
Packaging
|
Export Standard Carton + Wooden Pallet, Anti-rust & Anti-collision
|
|
Delivery Time
|
3-7 Days for Stock Items; 12-20 Working Days for Custom Orders
|
FAQ
Q: Do you provide free sample?
A: Yes, but please note the transportation charge will be paid on your side.
Q: What kind of materail you can offer?
A: We can offer you GALVANIZED STEEL, STAINLESS STEEL, ALUMINUM, CABLE TRAY.
Q: What kind of standard you are following?
A: We are producing following by GB/T19001-2008, ISO9001:2008, SGS, MA...
Q: Could you change the size for the customer?
A: Yes, depends on your special demands.
Q: How many days delivery the order?
A: Normally 20 days after deposit or L/C, depends your request.
