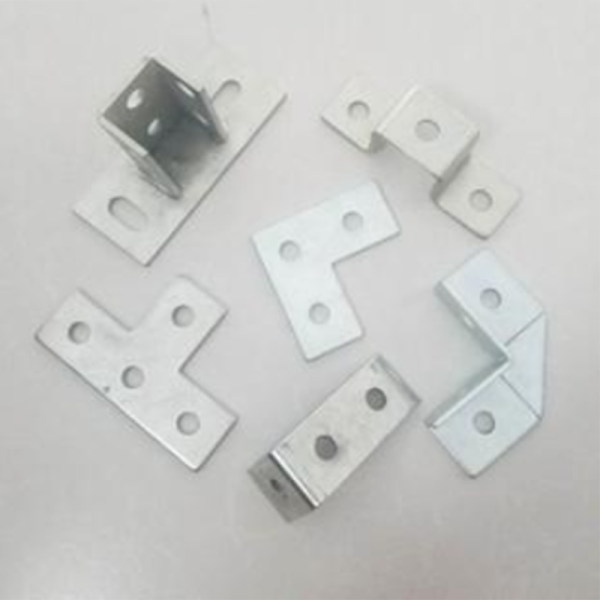

4-6mm Pv Support Bracket Base Standard Size For Ground & Roof

  • 1
  • 2

Delivery Time : 15-20 work days

Compatible Channel : 41×21mm Strut Channel

Snow Load : 1.2–2.0kN/㎡

Price : Discuss

Surface Treatment : Hot Dip Galvanized (HDG)

Supply Ability : 50 to 80+ tons/day

Brand Name : Jiucan Metal

Payment Terms : T/T, T/T

Thickness : 4-6mm/ Customized

Place of Origin : Hebei,China

Material : Q235/Steel

Hole Spacing : 60mm / Standard 47.6mm

Packing : Standard export packing

Packaging Details : Pack According To The Product Size/Customized

Hole Type : Round Hole φ11 / φ13.5; Oblong Slot Hole; Custom Hole Pattern

Sample : Free

Working Load : 150kg–800kg (According to thickness & structure)

Tolerance : ±3%

Certification : ISO9001

Product name : Solar Racking Foundation

Size : Standard size

MOQ : 500 pcs

Contact Now

Solar Racking System Base for Ground & Roof

Introduction

Our multi-scenario solar racking system base is designed for both rooftop and ground-mounted photovoltaic installations. Made of high-quality galvanized steel, it combines lightweight structure with reliable strength, suitable for residential, commercial and industrial solar projects. It serves as the core connecting component between solar racking rails and installation surfaces, ensuring stable and secure mounting of PV panels. The universal design adapts to flat roofs, sloped roofs, concrete foundations and ground mounting systems, offering high project flexibility. Precisely processed mounting holes enable fast bolt assembly without welding or drilling, simplifying construction and reducing labor costs. The anti-corrosion surface treatment ensures long service life in outdoor, humid and coastal environments. Each base is strictly tested for load capacity and weather resistance to meet international solar mounting standards. It is a versatile and cost-effective foundational solution for diversified solar racking systems.

Features

This solar racking base features strong dual compatibility for rooftop and ground installation scenarios. High-quality galvanized steel provides reliable strength and long-term anti-rust performance. The lightweight yet sturdy structure reduces overall load on roofs while maintaining excellent stability. Standardized dimensions and hole spacing ensure wide compatibility with most solar racking rails and accessories. Tool-free modular assembly speeds up installation and improves construction efficiency. The stable support structure evenly distributes loads, enhancing wind and snow resistance of the PV system. Its anti-corrosion surface effectively extends service life in harsh outdoor environments. With high versatility and reliable performance, it meets the installation needs of various solar projects and provides stable foundational support for solar racking systems.

Specification

Item Specification Details
Product Name Solar Mounting Bracket Base / PV Mount Base / Solar Racking Foundation
Material Q235B Carbon Steel; AL6005-T5 Aluminum Alloy; Stainless Steel 304/316
Surface Treatment Hot Dip Galvanized (HDG); Pre-Galvanized; Anodized; Electro-Galvanized
Standard Size 100×100mm / 120×120mm / 150×150mm / 200×200mm (Customizable)
Thickness 3.0mm / 4.0mm / 5.0mm / 6.0mm (Customizable)
Compatible Channel 41×21mm / 41×41mm Strut Channel, Standard Solar Mounting Rails
Hole Type Round Hole φ11 / φ13.5; Oblong Slot Hole; Custom Hole Pattern
Hole Spacing 40mm / 50mm / 60mm / Standard 47.6mm
Working Load 150kg–800kg (According to thickness & structure)
Wind Pressure Resistance Up to 60m/s (Customizable for high wind area)
Snow Load 1.2–2.0kN/㎡
Temperature Range -40℃ ~ +120℃
Anti-Corrosion Grade HDG: 20–30 years outdoor; Aluminum: 25+ years; SS316: Marine Grade
Installation Type Bolt Fixed, Adjustable, Ground / Roof Mounted
Certification ISO9001, CE, SGS, TUV Test Report Available
Application Ground PV Station, Rooftop Solar, Solar Farm, Industrial PV System
MOQ 100pcs / Accept Small Trial Order
OEM & ODM Size, Thickness, Logo, Packaging All Customizable
Packing Carton + Pallet; Custom Packing Acceptable
Service Life 20–30 years



4-6mm Pv Support Bracket Base Standard Size For Ground & Roof


FAQ

Q: Do you provide free sample?
A: Yes, but please note the transportation charge will be paid on your side.

Q: What kind of materail you can offer?
A: We can offer you GALVANIZED STEEL, STAINLESS STEEL, ALUMINUM, CABLE TRAY.
Q: What kind of standard you are following?
A: We are producing following by GB/T19001-2008, ISO9001:2008, SGS, MA...
Q: Could you change the size for the customer?
A: Yes, depends on your special demands.
Q: How many days delivery the order?
A: Normally 20 days after deposit or L/C, depends your request.
