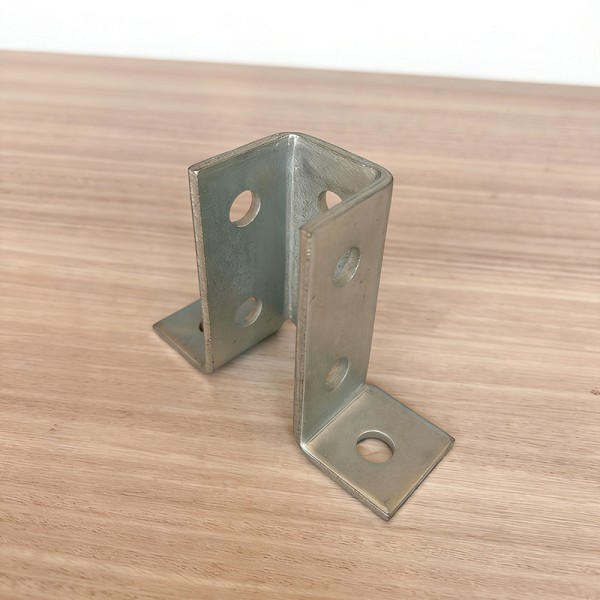

Solar Mounting Bracket Base Galvanized Steel ISO9001 1.2–2.0kN/㎡ Snow Load

  • 1
  • 2

Delivery Time : 15-20 work days

Compatible Channel : 41×41mm Strut Channel

Snow Load : 1.2–2.0kN/㎡

Price : $0.8/PC

Surface Treatment : Hot Dip Galvanized (HDG)

Brand Name : Jiucan Metal

Payment Terms : T/T,T/T

Thickness : 3-6mm/ Customized

Place of Origin : Hebei,China

Material : Q195/Q235/Steel

Certification : ISO9001

Product name : Solar Mounting Bracket Base

MOQ : 500 pcs

Size : Standard size

Hole Spacing : 40mm / 50mm / Standard 47.6mm

Packing : Standard export packing

Packaging Details : Pack According To The Product Size/Customized

Supply Ability : 50 to 80+ tons/day

Hole Type : Round Hole φ11 / φ13.5; Oblong Slot Hole; Custom Hole Pattern

Sample : Free

Working Load : 150kg–800kg (According to thickness & structure)

Tolerance : ±3%

Contact Now

Solar Mounting Bracket Base Galvanized Steel

Introduction

Our galvanized steel solar mounting bracket base is a robust foundational component designed for reliable photovoltaic system installation. Made from high-strength Q235B carbon steel with hot-dip galvanized surface treatment, it provides exceptional structural stability and long-term anti-corrosion performance. This base serves as the critical support between solar mounting rails and ground or roof foundations, evenly distributing panel weight, wind pressure and snow load to protect the entire PV system. It is widely applied in residential rooftop solar, commercial solar farms, ground-mounted power stations and industrial photovoltaic projects. Compatible with standard aluminum and steel mounting rails, it features pre-punched holes for fast bolt-on assembly without on-site modification. Each base undergoes load testing and quality inspection to meet international solar engineering standards, ensuring stable operation in outdoor environments for over 15 years. It is an economical and durable solution for secure solar panel mounting.

Features

This solar mounting base features heavy-duty galvanized steel construction for superior strength and deformation resistance. The thick hot-dip galvanized coating effectively resists rust, oxidation and weather erosion, extending service life in harsh outdoor conditions. Precisely punched holes ensure accurate alignment with mounting rails, enabling quick and easy installation to save labor time. Its stable structural design evenly distributes dynamic loads, enhancing wind resistance and seismic performance of the PV system. The universal size fits most mainstream solar mounting systems, improving project compatibility and reducing accessory types. With high rigidity and low maintenance requirements, it maintains stable performance under long-term outdoor exposure. It provides reliable foundational support for solar panels, ensuring safe and efficient operation of photovoltaic systems.

Specification

Item Specification Details
Product Name Solar Mounting Bracket Base / PV Mount Base / Solar Racking Foundation
Material Q235B Carbon Steel; AL6005-T5 Aluminum Alloy; Stainless Steel 304/316
Surface Treatment Hot Dip Galvanized (HDG); Pre-Galvanized; Anodized; Electro-Galvanized
Standard Size 100×100mm / 120×120mm / 150×150mm / 200×200mm (Customizable)
Thickness 3.0mm / 4.0mm / 5.0mm / 6.0mm (Customizable)
Compatible Channel 41×21mm / 41×41mm Strut Channel, Standard Solar Mounting Rails
Hole Type Round Hole φ11 / φ13.5; Oblong Slot Hole; Custom Hole Pattern
Hole Spacing 40mm / 50mm / 60mm / Standard 47.6mm
Working Load 150kg–800kg (According to thickness & structure)
Wind Pressure Resistance Up to 60m/s (Customizable for high wind area)
Snow Load 1.2–2.0kN/㎡
Temperature Range -40℃ ~ +120℃
Anti-Corrosion Grade HDG: 20–30 years outdoor; Aluminum: 25+ years; SS316: Marine Grade
Installation Type Bolt Fixed, Adjustable, Ground / Roof Mounted
Certification ISO9001, CE, SGS, TUV Test Report Available
Application Ground PV Station, Rooftop Solar, Solar Farm, Industrial PV System
MOQ 100pcs / Accept Small Trial Order
OEM & ODM Size, Thickness, Logo, Packaging All Customizable
Packing Carton + Pallet; Custom Packing Acceptable
Service Life 20–30 years



Solar Mounting Bracket Base Galvanized Steel ISO9001 1.2–2.0kN/㎡ Snow Load


FAQ

Q: Do you provide free sample?
A: Yes, but please note the transportation charge will be paid on your side.

Q: What kind of materail you can offer?
A: We can offer you GALVANIZED STEEL, STAINLESS STEEL, ALUMINUM, CABLE TRAY.
Q: What kind of standard you are following?
A: We are producing following by GB/T19001-2008, ISO9001:2008, SGS, MA...
Q: Could you change the size for the customer?
A: Yes, depends on your special demands.
Q: How many days delivery the order?
A: Normally 20 days after deposit or L/C, depends your request.
