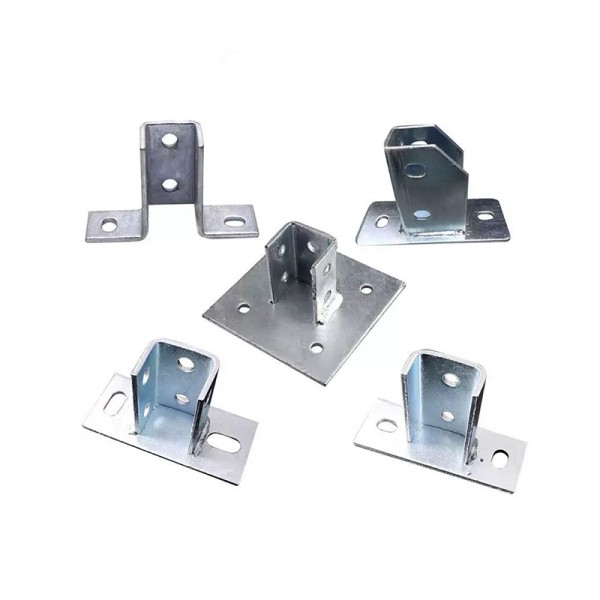

50mm / 60mm Hole Solar Panel Mount Base Customizable Standard Size

  • 1
  • 2

Delivery Time : 15-20 work days

Compatible Channel : 41×41mm Strut Channel

Tolerance : ±3%

Price : Discuss

Surface Treatment : Hot Dip Galvanized (HDG)

Place of Origin : Hebei,China

Material : Q235/Steel

Snow Load : 1.2–2.0kN/㎡

Packaging Details : Pack According To The Product Size/Customized

Hole Spacing : 50mm / 60mm

Size : Standard size

Supply Ability : 50 to 80+ tons/day

Brand Name : Jiucan Metal

Certification : ISO9001

Product name : Solar Mounting Bracket Base

Packing : Standard export packing

MOQ : 500 pcs

Payment Terms : T/T, T/T

Thickness : 3-6mm/ Customized

Contact Now

Factory Supply Solar Panel Mount Base Customizable

Introduction

We are a direct factory supplying customizable solar panel mount bases tailored to special project requirements. We support customization of size, thickness, hole pattern, shape and surface treatment to meet non-standard installation needs. Materials include galvanized steel, stainless steel and aluminum alloy for different load and anti-corrosion demands. Custom bases are widely used in special-shaped PV systems, large-scale solar farms, customized rooftop installations and industrial photovoltaic projects. Our advanced stamping and CNC equipment ensures high processing accuracy and consistent quality. We accept small-batch trial orders and large-volume mass production with fast lead times. Each customized product undergoes strict quality inspection to meet international standards. With flexible customization and reliable factory supply, we provide personalized foundational solutions for diversified solar mounting projects.

Features

This customizable solar mount base supports full-size customization including dimensions, hole spacing, thickness and shape. Multiple material and surface finish options adapt to different load, environment and anti-corrosion requirements. Precision processing ensures smooth edges, accurate holes and stable fitting. Custom designs solve non-standard installation challenges and improve project adaptability. Flexible order quantities support both prototype development and mass production. Factory direct supply ensures competitive pricing and stable quality. High compatibility with various solar mounting systems enhances project flexibility. Strict quality control guarantees reliable performance and long service life. With strong customization capability and efficient production, it provides personalized, reliable foundational support for special solar photovoltaic projects.

Specification

Item Specification Details
Product Name Solar Mounting Bracket Base / PV Mount Base / Solar Racking Foundation
Material Q235B Carbon Steel; AL6005-T5 Aluminum Alloy; Stainless Steel 304/316
Surface Treatment Hot Dip Galvanized (HDG); Pre-Galvanized; Anodized; Electro-Galvanized
Standard Size 100×100mm / 120×120mm / 150×150mm / 200×200mm (Customizable)
Thickness 3.0mm / 4.0mm / 5.0mm / 6.0mm (Customizable)
Compatible Channel 41×21mm / 41×41mm Strut Channel, Standard Solar Mounting Rails
Hole Type Round Hole φ11 / φ13.5; Oblong Slot Hole; Custom Hole Pattern
Hole Spacing 40mm / 50mm / 60mm / Standard 47.6mm
Working Load 150kg–800kg (According to thickness & structure)
Wind Pressure Resistance Up to 60m/s (Customizable for high wind area)
Snow Load 1.2–2.0kN/㎡
Temperature Range -40℃ ~ +120℃
Anti-Corrosion Grade HDG: 20–30 years outdoor; Aluminum: 25+ years; SS316: Marine Grade
Installation Type Bolt Fixed, Adjustable, Ground / Roof Mounted
Certification ISO9001, CE, SGS, TUV Test Report Available
Application Ground PV Station, Rooftop Solar, Solar Farm, Industrial PV System
MOQ 100pcs / Accept Small Trial Order
OEM & ODM Size, Thickness, Logo, Packaging All Customizable
Packing Carton + Pallet; Custom Packing Acceptable
Service Life 20–30 years



50mm / 60mm Hole Solar Panel Mount Base Customizable Standard Size


FAQ

Q: Do you provide free sample?
A: Yes, but please note the transportation charge will be paid on your side.

Q: What kind of materail you can offer?
A: We can offer you GALVANIZED STEEL, STAINLESS STEEL, ALUMINUM, CABLE TRAY.
Q: What kind of standard you are following?
A: We are producing following by GB/T19001-2008, ISO9001:2008, SGS, MA...
Q: Could you change the size for the customer?
A: Yes, depends on your special demands.
Q: How many days delivery the order?
A: Normally 20 days after deposit or L/C, depends your request.
